Filtration Technologies for Physical Contaminant Removal
Selecting the right filtration mechanism for suspended solids, turbidity, SDI, and microbial removal
1. Overview of Filtration
Filtration is the physical separation of suspended or colloidal particles from water by passing the flow through a porous medium or barrier. The process is based on size exclusion and particle capture mechanisms, enabling the removal of particulate matter that cannot be effectively eliminated through chemical treatment alone.
Building on this foundational role, filtration in water treatment systems is rarely a standalone step. Instead, it forms part of a structured sequence of processes, where upstream pre-treatment (e.g., coagulation or sedimentation) reduces initial solids loading, allowing each subsequent filtration stage to target progressively finer particle size ranges and enhance overall water quality.
This staged approach not only protects downstream units from excessive fouling but also boosts treatment efficiency and ensures stable operation throughout the entire train. Each filtration mechanism differs in terms of removal efficiency, particle size range, capital and operating costs, fouling susceptibility, and suitability for specific water qualities.
As a result, modern treatment systems are typically designed as integrated multi-barrier processes, where each filtration stage is selected to optimize performance, protect downstream units, and achieve the required effluent quality in a cost-effective manner.
Purpose and Application Rationale
​
Suspended or colloidal physical contaminants in water are effectively targeted and removed through filtration processes. Filtration provides a physical barrier that intercepts and retains these particles, improving water clarity and overall process performance. The driving rationale for employing filtration includes:
​
Protect downstream processes
Reducing Total Suspended Solids (TSS) and particulate load significantly enhances the reliability and lifespan of downstream treatment units. In membrane systems such as reverse osmosis, lower fouling potential translates to reduced cleaning frequency, stable permeate flux, and lower operational costs. Similarly, ion exchange resins, pumps, valves, and heat exchangers benefit from minimized particulate abrasion and deposition, resulting in improved efficiency and extended service life.
​
Regulatory compliance
Filtration is a critical step in meeting drinking water quality standards established by regulatory bodies such as the United States Environmental Protection Agency and the World Health Organization. For potable water treatment, the EPA requires turbidity levels of ≤ 0.3 NTU (95th percentile) and ≤ 1 NTU as an absolute maximum at the treatment plant effluent. Maintaining low turbidity is essential to ensure consistent treatment performance and compliance with public health guidelines.
​
Enhancement of disinfection efficiency
By removing suspended and colloidal particles, filtration improves the effectiveness of downstream disinfection processes. Particles can harbor or shield microorganisms, reducing disinfectant contact efficiency. Effective filtration ensures better exposure of pathogens to disinfectants, supporting reliable microbial control.
​
Improvement of aesthetic water quality
Filtration contributes to improved visual clarity by reducing turbidity, color, and visible particulates. This is particularly important in potable water systems, where consumer perception and acceptance are closely linked to water appearance and overall quality.
​
Operational stability and process optimization
Consistent removal of particulates helps stabilize overall treatment performance by reducing fluctuations in influent water quality. This leads to more predictable operation of downstream units, optimized chemical dosing, and improved control over the entire treatment process.
​
Filtration Techniques
1. Surface Filtration
Captures particles primarily on the surface of the filter medium through a sieving mechanism, where particles larger than the filter's pore size are retained while filtrate passes through.
Unlike depth filtration where contaminants distribute throughout the media thickness surface retention builds a filter cake at the media interface. This cake progressively narrows effective pore openings, initially boosting efficiency for finer particles removal but eventually increasing resistance and pore blockage. Cake formation drives head loss, triggering automated backwash (air/water) or manual replacement depending on solids load.
​
Cartridge filters use wound polypropylene, pleated polyester, or melt-blown fibers (usually 1–25 nominal micron ratings with values down to 0.2 for absolute rating) to provide final polishing ahead of membranes or sensitive equipment.
%20filtration.webp)
Cartridge filter for surface (barrier) filtration
2. Depth Filtration
In depth filtration, water flows through a granular media bed and particles are trapped throughout the bed depth rather than solely at the surface resulting in extended solids holding capacity and allowing longer filter runs and higher flow rates.
The performance of depth filtration is strongly influenced by media properties such as effective grain size, uniformity coefficient, shape, and bed depth, as well as operational parameters like filtration velocity and influent water quality. Typically, coarser media layers capture larger particles near the top of the bed, while finer media layers enhance removal of smaller particles deeper within the filter.
​
Depth filtration systems are capable of removing particles in the range of approximately 10–100 µm, with advanced or optimized media configurations achieving removal down to 1–5 µm.
.webp)
Pressurized multimedia sand filter vessel (industrial scale)
3. Membrane Filtration
Microfiltration and ultrafiltration are pressure-driven membrane processes that provide an absolute barrier against particles larger than their nominal pore size. For microfiltration and ultrafiltration, separation occurs primarily by size exclusion, allowing water and dissolved species to pass while retaining suspended solids, colloids, and microorganisms.
In contrast, tighter membranes such as nanofiltration and reverse osmosis are capable of removing not only particulate matter but also dissolved constituents, including salts, organic molecules, and ions, through a combination of size exclusion, charge effects, and diffusion-controlled transport.
​
UF reliably removes bacteria, Cryptosporidium, Giardia, and some viruses, and consistently able to achieve effluents of SDI < 2 with SDI < 1 achievable for clean or pre-treated source waters. It is also able to deliver effluents with turbidity values < 0.1 NTU. Operational performance depends on parameters such as transmembrane pressure, flux, recovery, and fouling control strategies.
To maintain permeability, systems employ backwashing, air scouring, and periodic chemical cleaning. Membrane units are modular and scalable, allowing flexible integration into both municipal and industrial treatment trains.
.webp)
UF module.

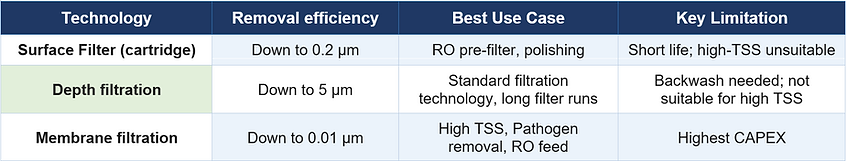

Optimal Applications When to Use Each Technology
​
Technology selection is driven by feed water quality, target effluent specifications, required flow rate, available footprint, and capital and operational budget. A proper assessment of these factors ensures reliable performance, cost efficiency, and long-term system sustainability.
​
Selection Rule: Always design filtration in layers coarse to medium to fine to membrane. Each layer protects the next. Skipping layers to reduce cost typically results in rapid fouling, higher cleaning frequency, and shorter membrane life.
